Metal & Heavy Industry
We provide mechanical design and consulting services for steel mills and related heavy industry operations, especially in retrofit and modernization projects. Services include:
- Engineering design for structural and mechanical systems
- Brownfield and Greenfield projects
- Evaluation and improvement of existing or aging equipment
- Site surveys and on-site data collection
- Reverse engineering and redesign of obsolete or undocumented parts
- Gearbox and hydraulic system design
- Installation supervision and technical consulting
- Engineering solutions for demanding industrial operating conditions
Blast Furnace Compressor

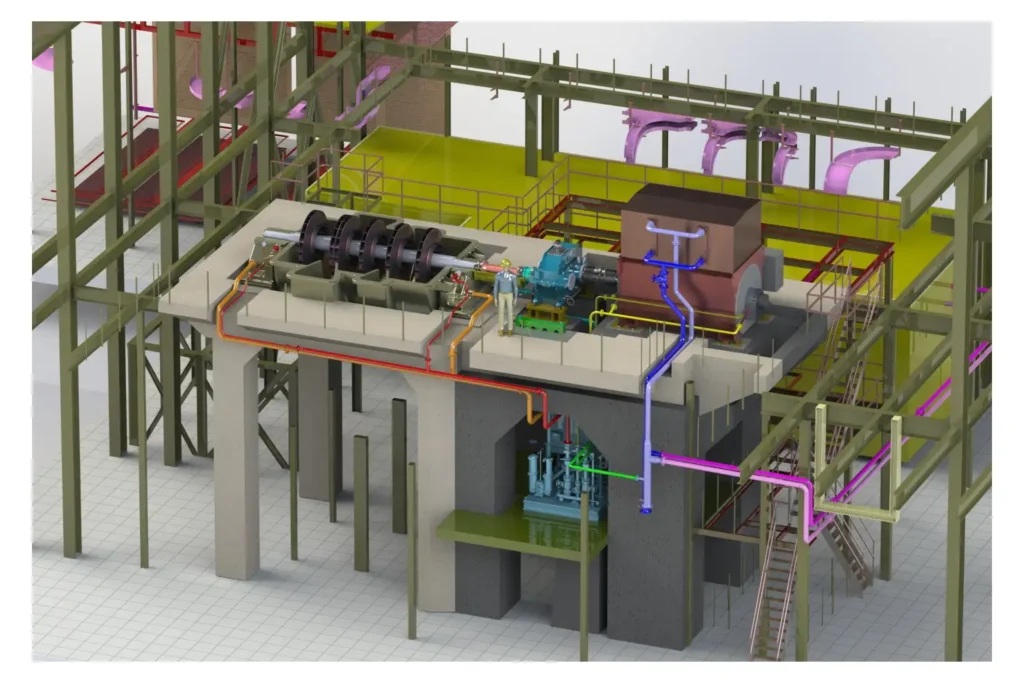

Electrification Retrofit of a Blast Furnace Compressor
- General layout design
- Motor foundation design and calculation
- Transmission components design and calculation
- Lubrication and cooling system
- Arrangement of auxiliary equipment
- Installation and Alignment supervision
Key Features and Specifications:
- Electrically driven Centrifugal Compressor
- Nominal power: 13.8 MW
- Driving machine: AC squirrel cage induction motor
- Blower type: Centrifugal compressor, four-stage with intermediate cooler
- Nominal speed (Max. speed): 3100 (3440) rpm
- Nominal power (Max. power): 13.8 (17.2) MW
- Nominal pressure: 5.2 bar abs.
- Nominal airflow: 4200 m³/min

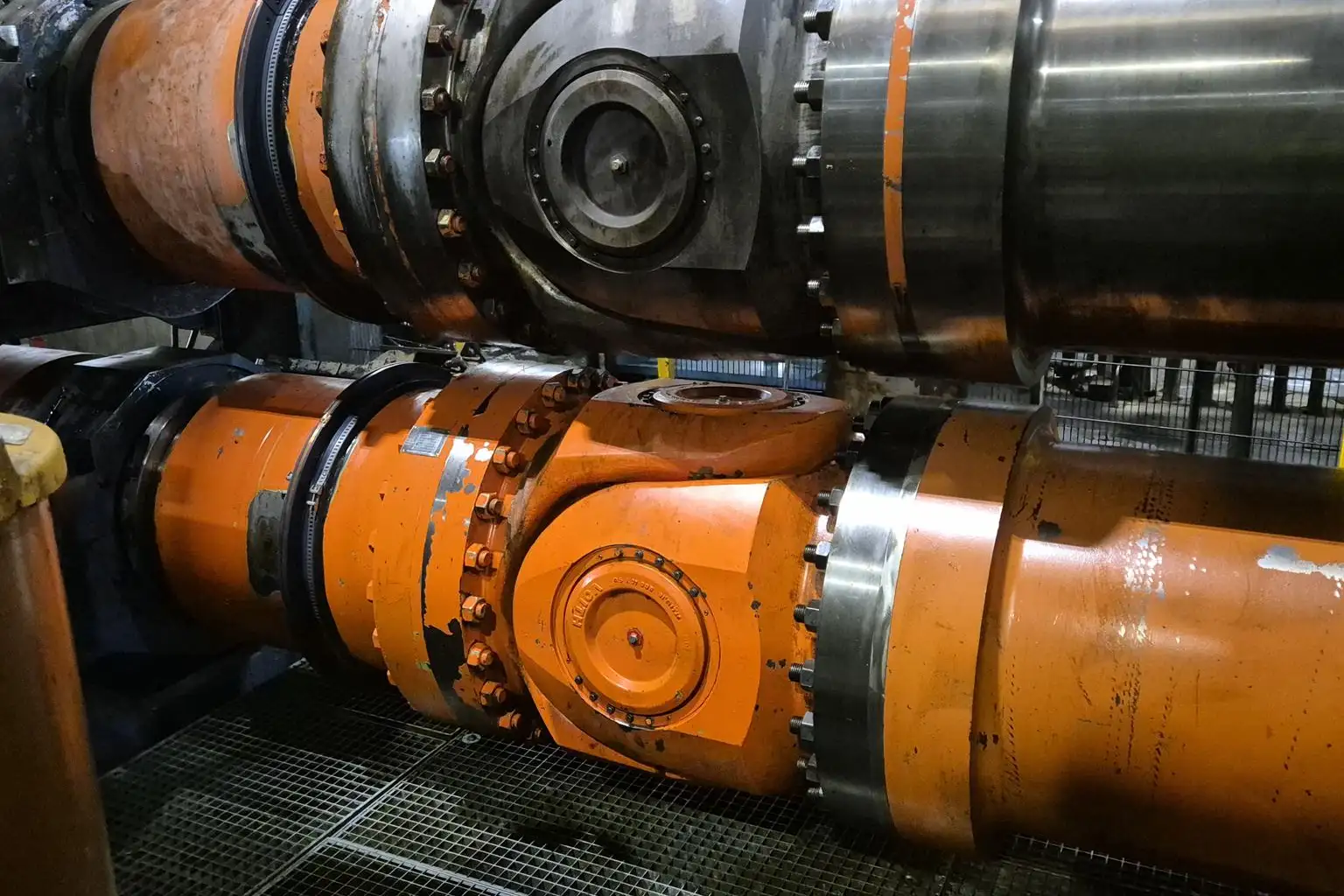

Steel Tandem Cold Mill
5 Stand Tandem Cold Mill Modernization
- Site survey
- General layout design
- Motor frame design, calculation and supply
- Lubrication and cooling system
- Arrangement of auxiliary equipment
- Installation and Alignment supervision
Key Features and Specifications:
- Motor Weight: 36 850 kg
- Nominal power: 6900 kW @ 375 rpm
- Nominal Torque: 176 000 Nm
- Short circuit Torque: 1 246 000 Nm
- Motor Baseplate Weight: 7800 kg
How We Work
Our experience ensures that retrofits are executed with minimal disruption to operations, delivering long-term reliability and performance for your systems.
